Details

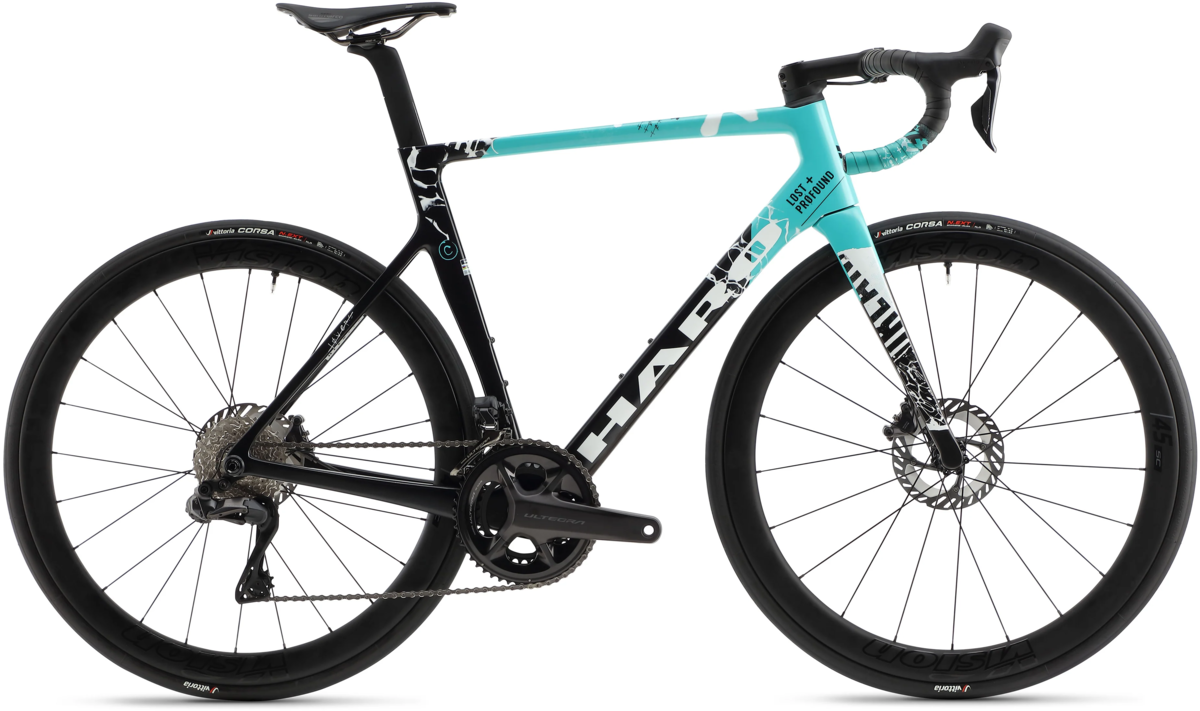

Who says you can't have it all (in a road bike)? The Rivette is our race-ready all-arounder, meticulously crafted from a mix of high-pitch carbon fiber in custom size-specific layups for an unmatched blend of unwavering stiffness and feathery weight. The Rivette's stiff headtube delivers precise steering for razor-sharp cornering and control. Aero tube shapes and fully internal cable routing create clean lines and reduce drag, ensuring every watt translates to pure speed. And with a short rear end for explosive acceleration, the Rivette's geometry is fine-tuned to let you conquer climbs, attack descents and carve through corners at race pace. Feel the road disappear beneath you as you push your limits and chase the podium on the Rivette.
The Rivette Carbon 1 features the same featherweight carbon fiber frame and fork fine-tuned for full speed, at a competitive level requiring no parts swaps. Spec'd with a full Ultegra Di2 group, it features the latest components including new Vision SC45 tubeless carbon wheels.
| SIZE | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top Tube (Effective) | 518mm | 533mm | 549mm | 565mm | 581mm | 605mm |
| Seat Tube (C-T) | 430mm | 470mm | 510mm | 536mm | 558mm | 590mm |
| Stack Height | 513mm | 533mm | 553mm | 574mm | 594mm | 624mm |
| Reach | 374mm | 383mm | 387mm | 393mm | 398mm | 406mm |
| Standover | 721mm | 753mm | 786mm | 809mm | 832mm | 862mm |
| Head Tube Length | 110mm | 130mm | 153mm | 164mm | 188mm | 220mm |
| Head Angle | 70.9° | 71.2° | 71.2° | 73° | 73° | 73° |
| Seat Angle | 74.6° | 74.3° | 74.3° | 73.3° | 72.9° | 72.3° |
| Wheel Base | 983mm | 997mm | 1009mm | 995mm | 1008mm | 1025mm |
| Chainstay | 408mm | 408mm | 408mm | 408mm | 408mm | 408mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 69mm | 69mm |
| Axle to Crown | 376mm | 376mm | 376mm | 376mm | 376mm | 376mm |
| Fork Offset | 53mm | 53mm | 53mm | 45mm | 45mm | 45mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm |
| Bar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Trail | 62.7mm | 60.4mm | 60.7mm | 57.8mm | 57.8mm | 57.8mm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
Specs
| Frame | Haro Rivette Carbon Frame |
|---|---|
| Fork | Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer |
| Wheels | Vision Carbon SC45 Tubeless Clincher |
| Tires | Vittoria Corsa N.EXT 30-622 TLR (tubeless ready) G2.0 700x30c |
| Bottom Bracket | T47, 76.75mm, ø24 |
| Crankset | Shimano Ultegra FC-R8100 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm |
| Shifters | Shimano Ultegra Di2 12 spd, ST-R8170 |
| Front Derailleur | Shimano Ultegra Di2, FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2 12spd, RD-8150 |
| Cassette/Freewheel | Shimano Ultegra 12spd, 11-34T |
| Chain | Shimano HG 12spd, CN-M8100 |
| Brakes | Shimano Ultegra Hydraulic Disc Brakes with 160mm Center Lock Rotors |
| Brake Levers | Shimano Ultegra Di2 |
| Handlebars | BLKTEC R2 Carbon Bars; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm;42cm; 61cm, 42cm |
| Tape/Grips | Ciclovation Advanced, Leather touch, 3mm Thick |
| Stem | BLKTEC Alloy AL6061-T6; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm |
| Headset | Token A-Box Headset with internal cable routing |
| Seatpost | Haro Rivette Carbon Aero; 275mm for 48/51/54/375mm for 56/58/61 |
| Saddle | Selle San Marco Shortfit 2.0 Open-Fit Racing Xsilite rails |
| Accessories & Extras | Includes Tubeless Valves, Tape and Sealant |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Teal / 48cm / 700c | 691840453530 | 45353 | |
| Black/Teal / 51cm / 700c | 691840453547 | 45354 | |
| Black/Teal / 54cm / 700c | 691840453554 | 45355 | 210000038565 |
| Black/Teal / 56cm / 700c | 691840453561 | 45356 | 210000038566 |
| Black/Teal / 58cm / 700c | 691840453578 | 45357 | |
| Black/Teal / 61cm / 700c | 691840453585 | 45358 | |
| Rose Gold/Black / 48cm / 700c | 691840453714 | 45371 | |
| Rose Gold/Black / 51cm / 700c | 691840453721 | 45372 | |
| Rose Gold/Black / 54cm / 700c | 691840453738 | 45373 | 210000038571 |
| Rose Gold/Black / 56cm / 700c | 691840453745 | 45374 | |
| Rose Gold/Black / 58cm / 700c | 691840453752 | 45375 | |
| Rose Gold/Black / 61cm / 700c | 691840453769 | 45376 |
